Deploying to AWS IoT

Flows created on enebular can be deployed to AWS IoT.

Creating a Flow

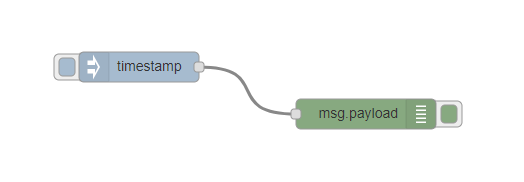

For this example, make a flow like the following.

Once the flow is ready, deploy it to save it.

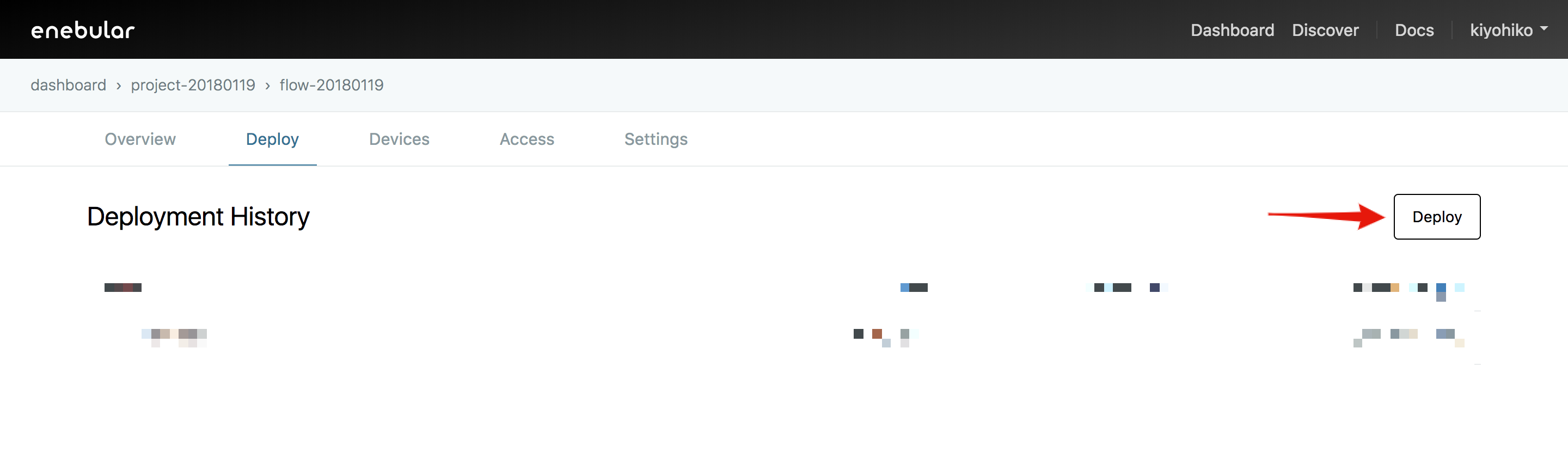

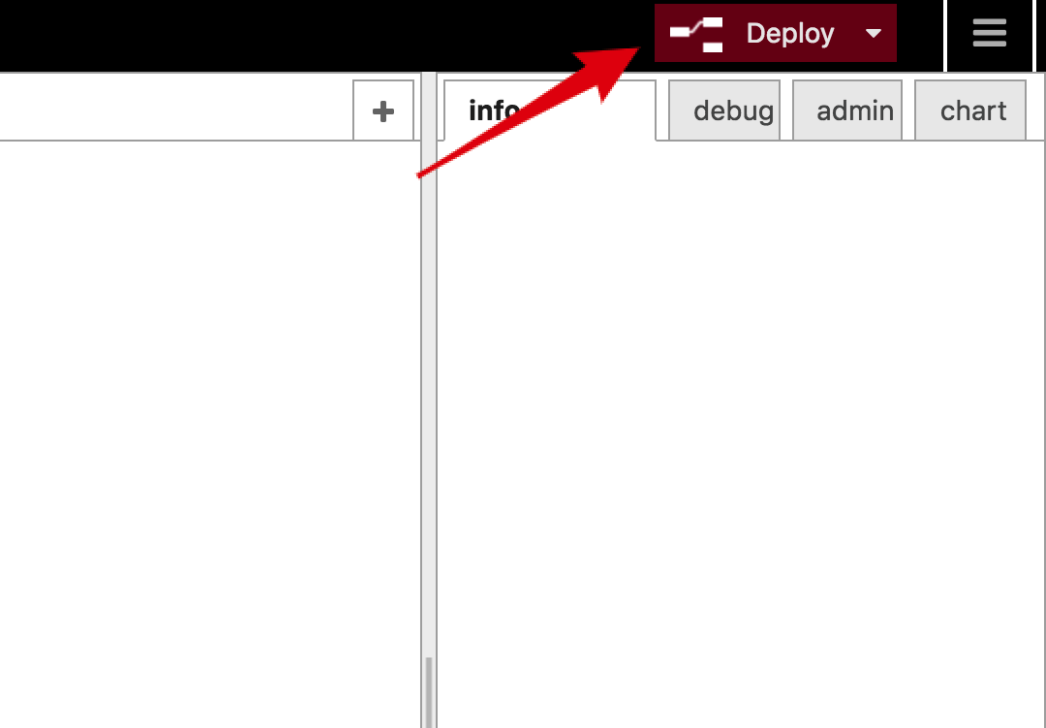

Once it has been saved, press "Deploy" on the flow's "Deploy" tab.

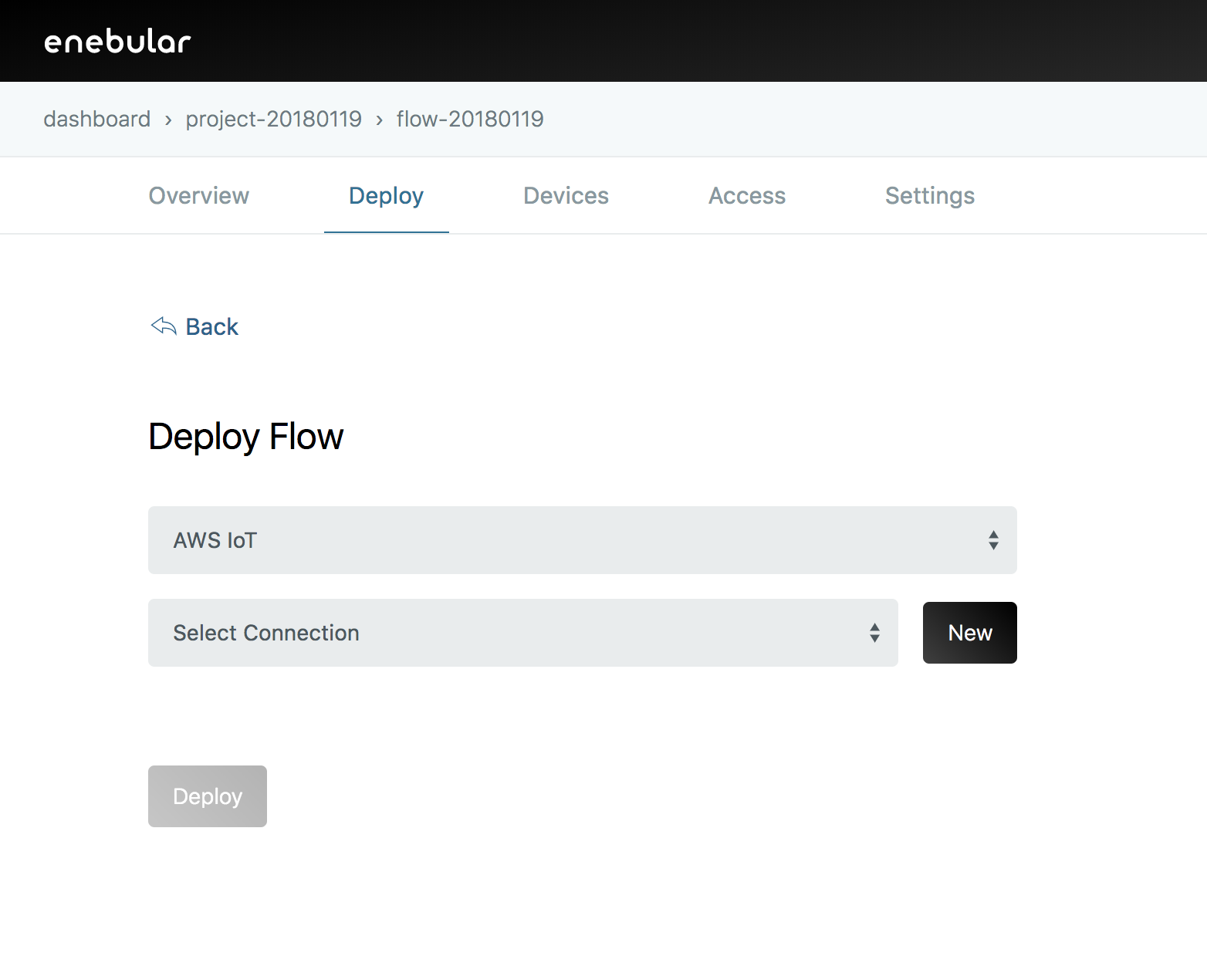

This will take you do the "Deploy Flow" screen. Choose AWS IoT for "Select Connection Type" and wait.

Creating the Configuration on AWS IoT

We'll create a configuration on AWS IoT to use this time.

Creating a Thing

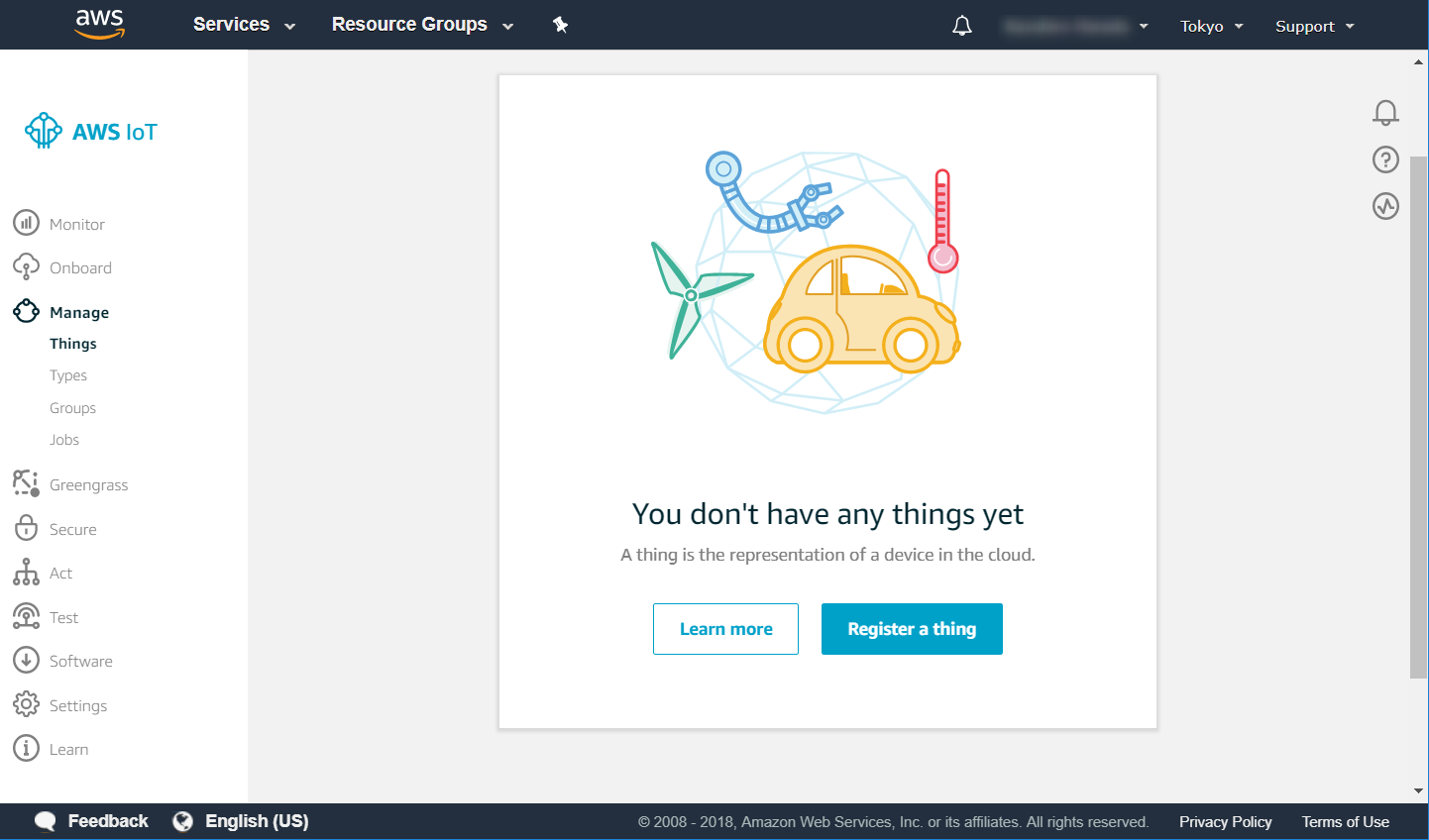

Select "Manage > Things" from the menu and press "Register a thing".

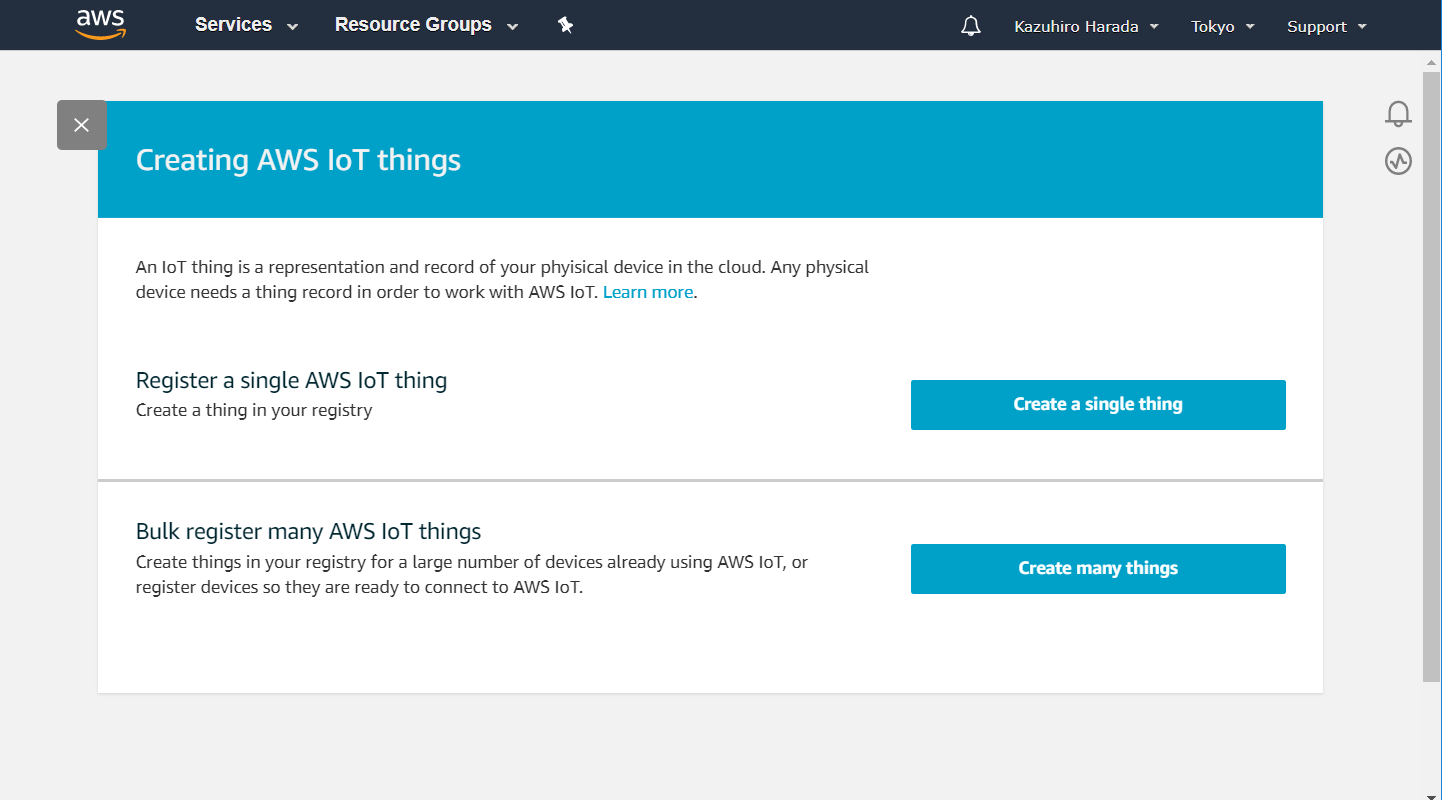

Press "Create a single thing".

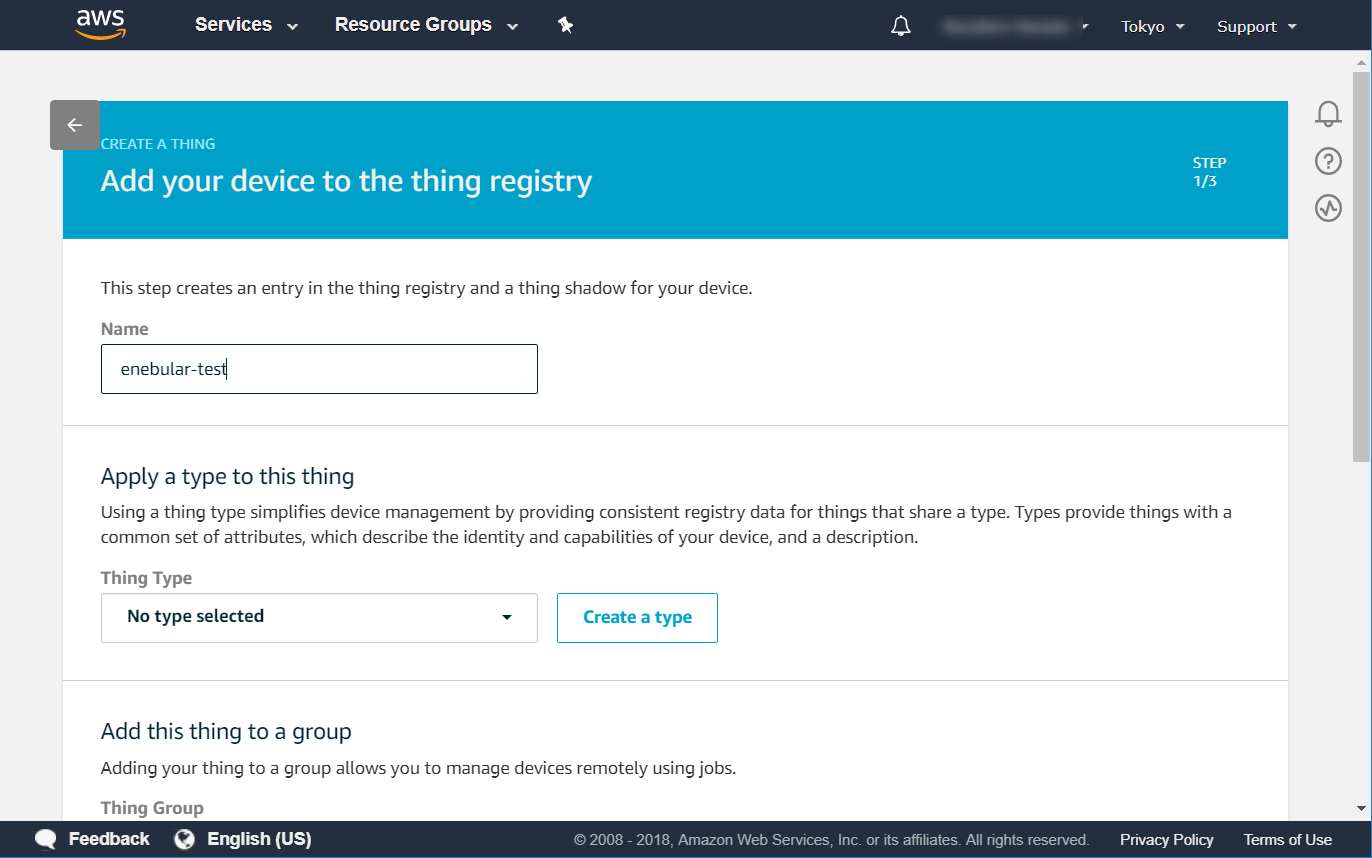

Give it an appropriate name and move to the next step.

Other items are left blank.

Creating the Certificates

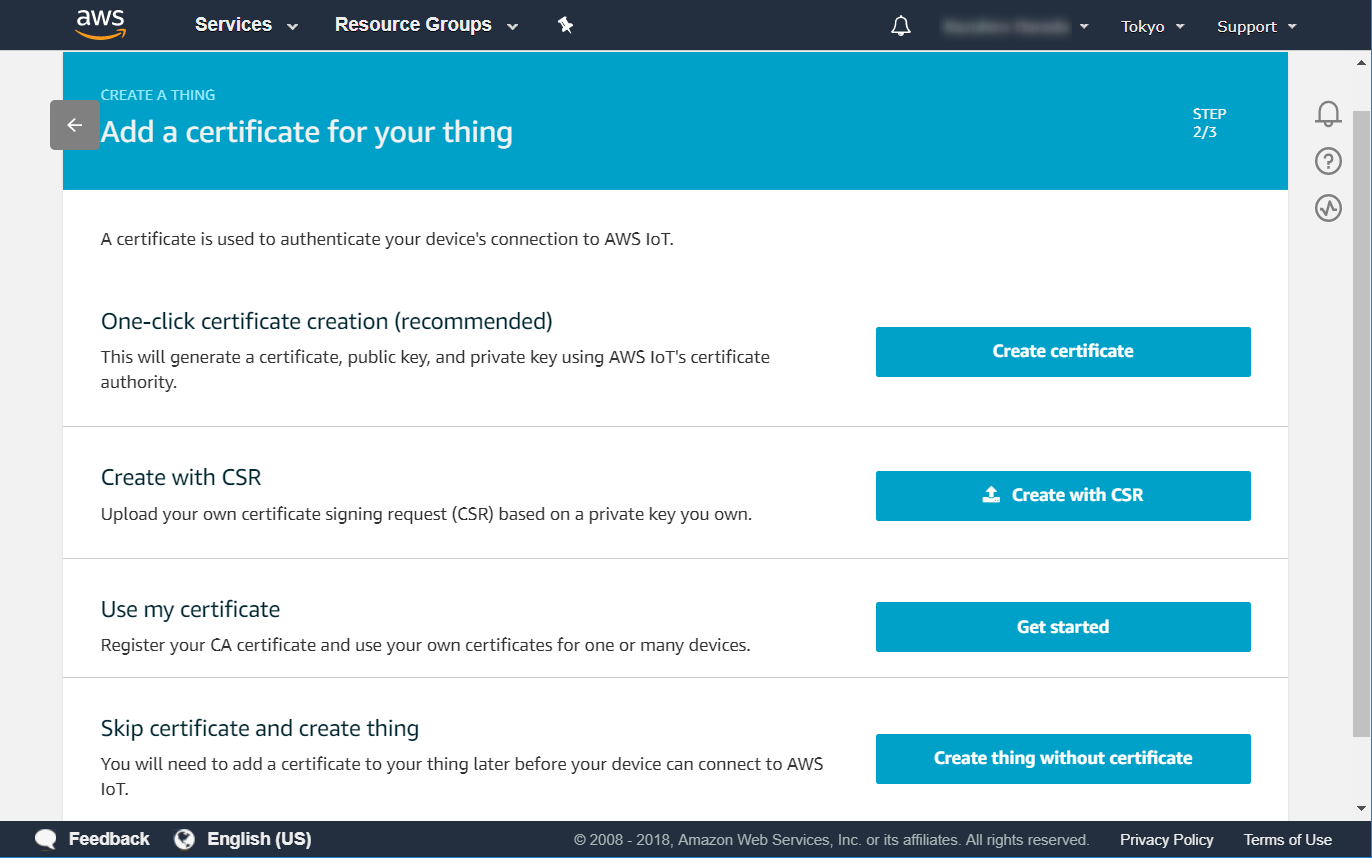

Press the "Create certificate" of One-click certificate creation.

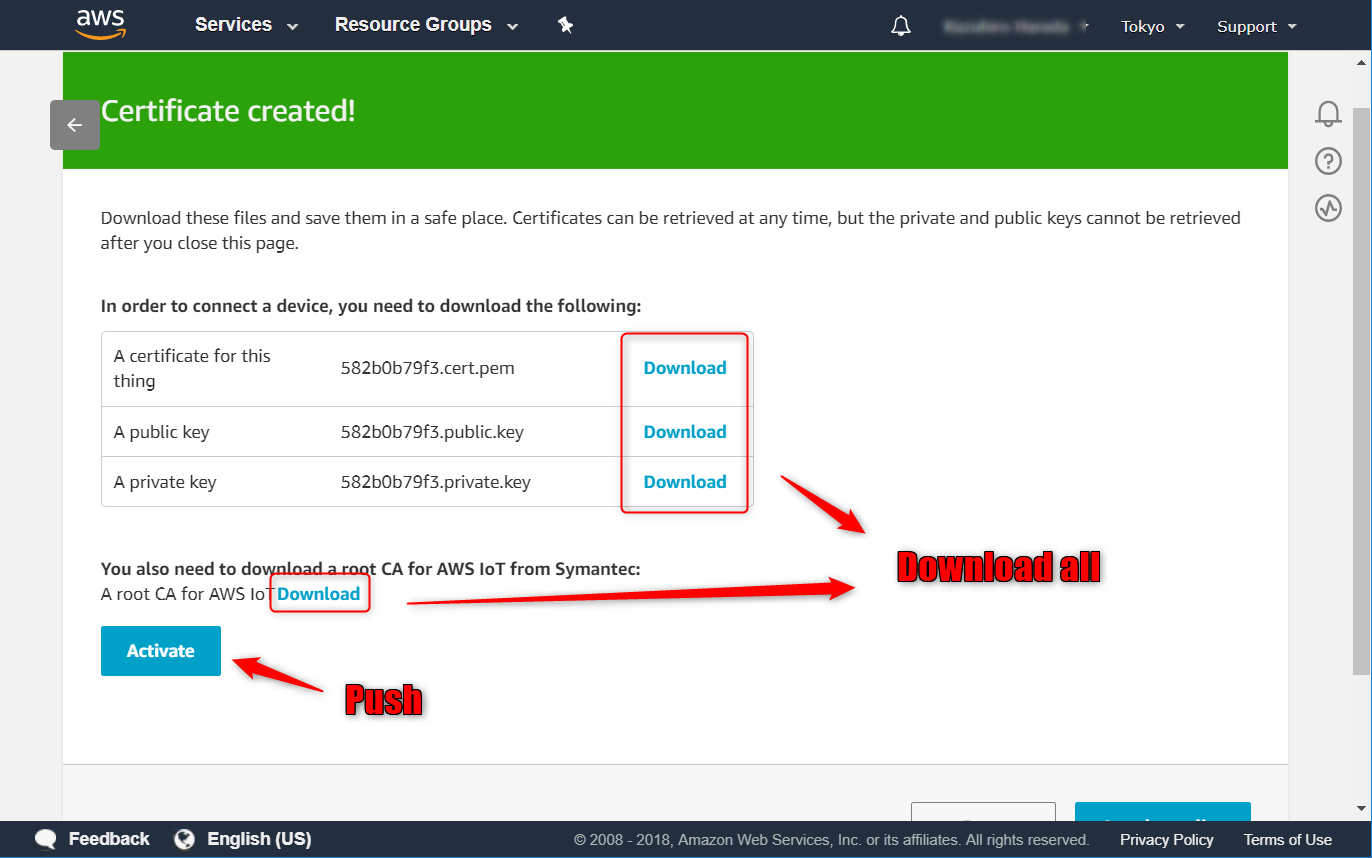

Download all of the files and activate it.

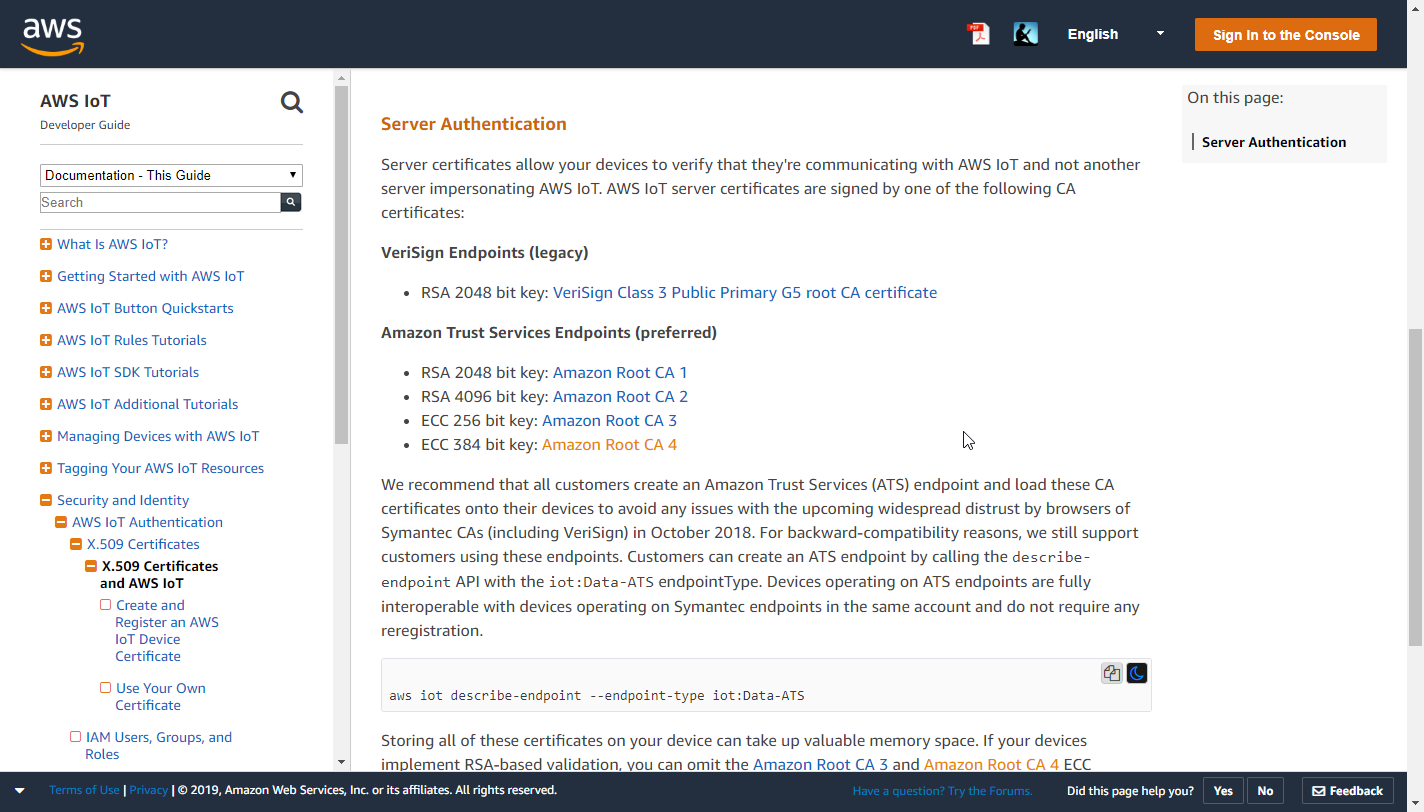

You select RSA 2048 bit key: Amazon Root CA1 for root CA for AWS IoT.

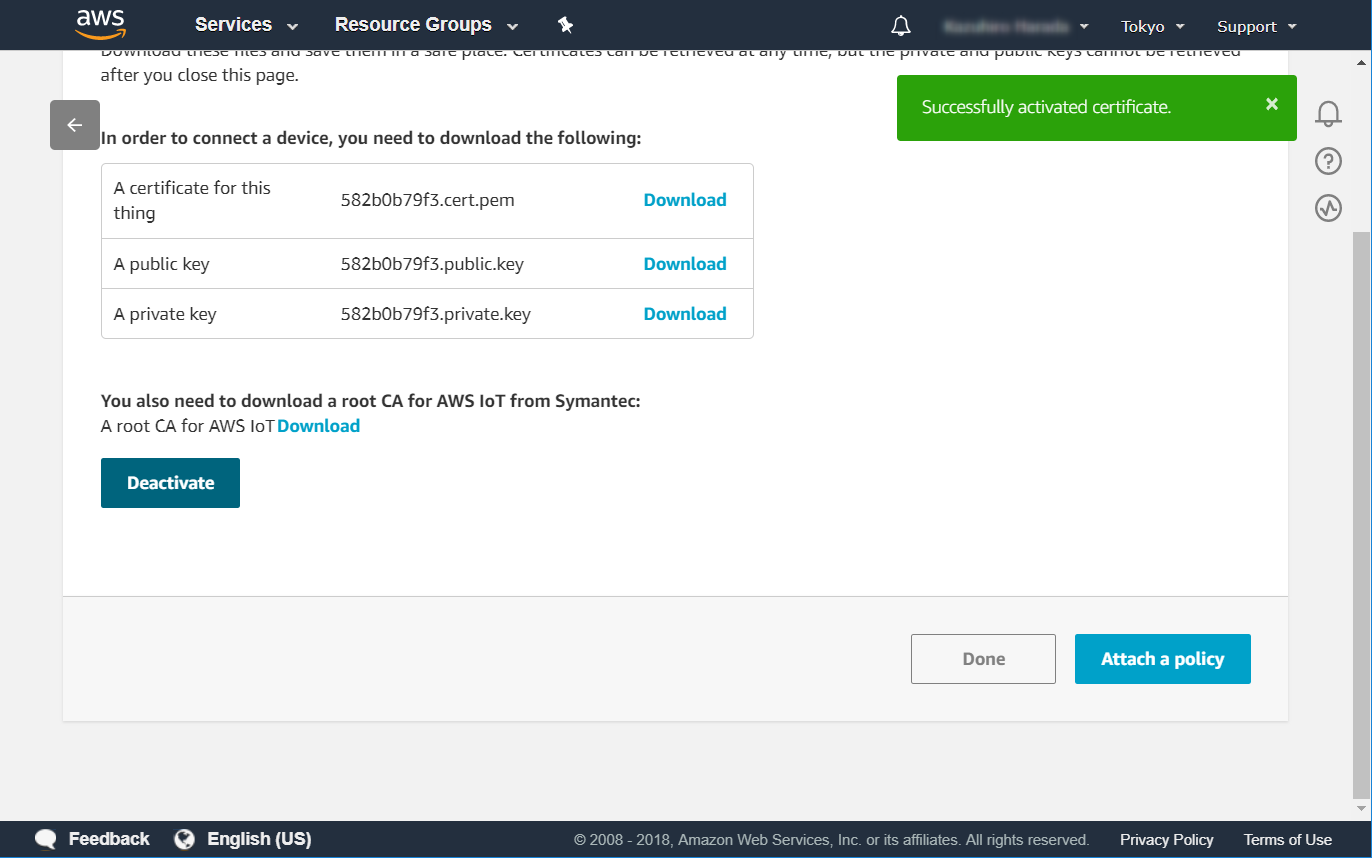

The activation will complete.

Creating the New Policies

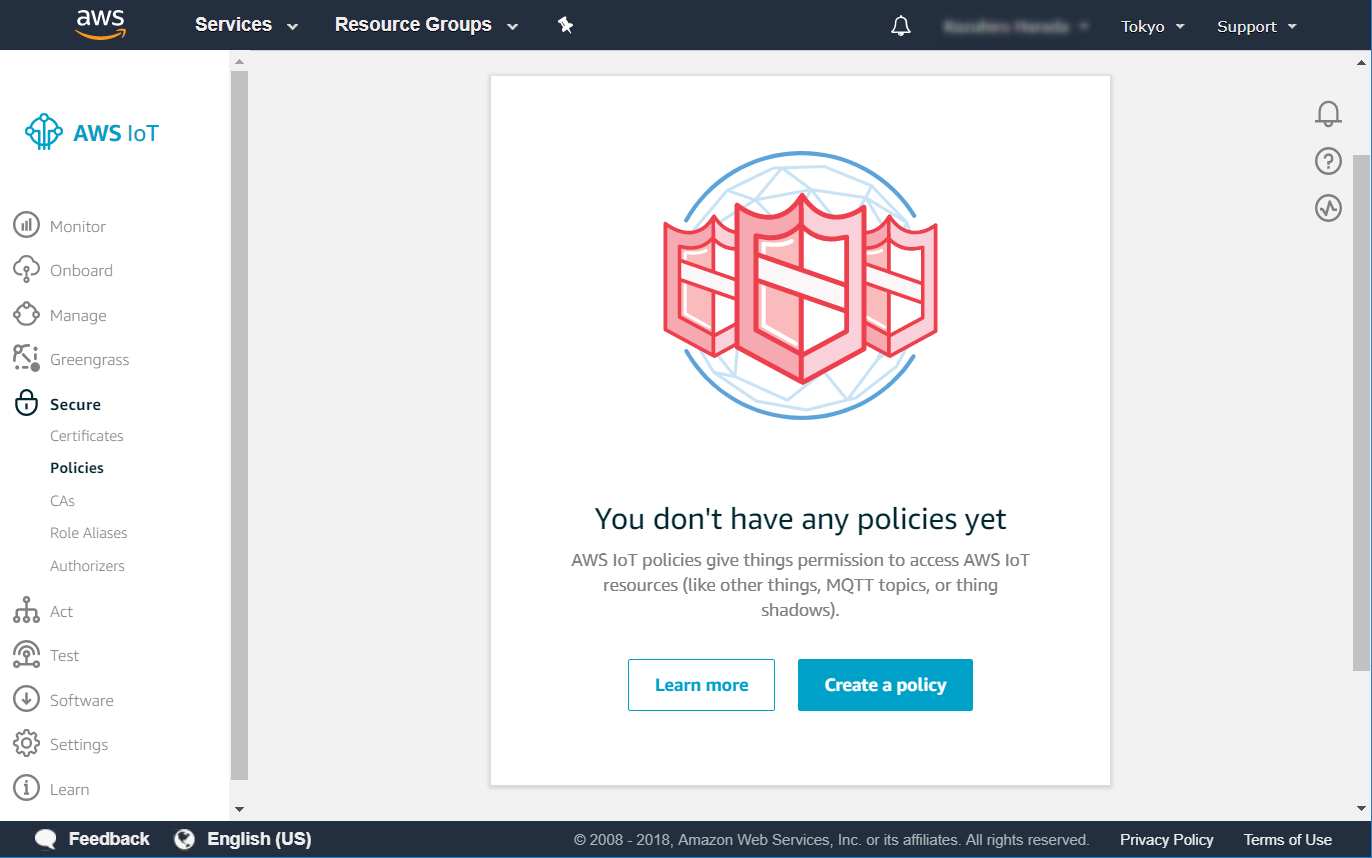

Select "Secure > Policies" from the menu and press "Create a policy".

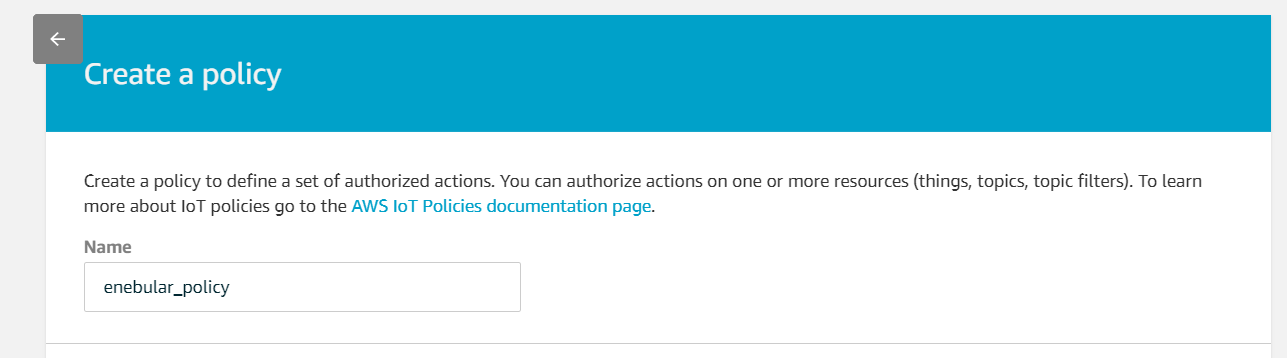

Specify an easy to understand name.

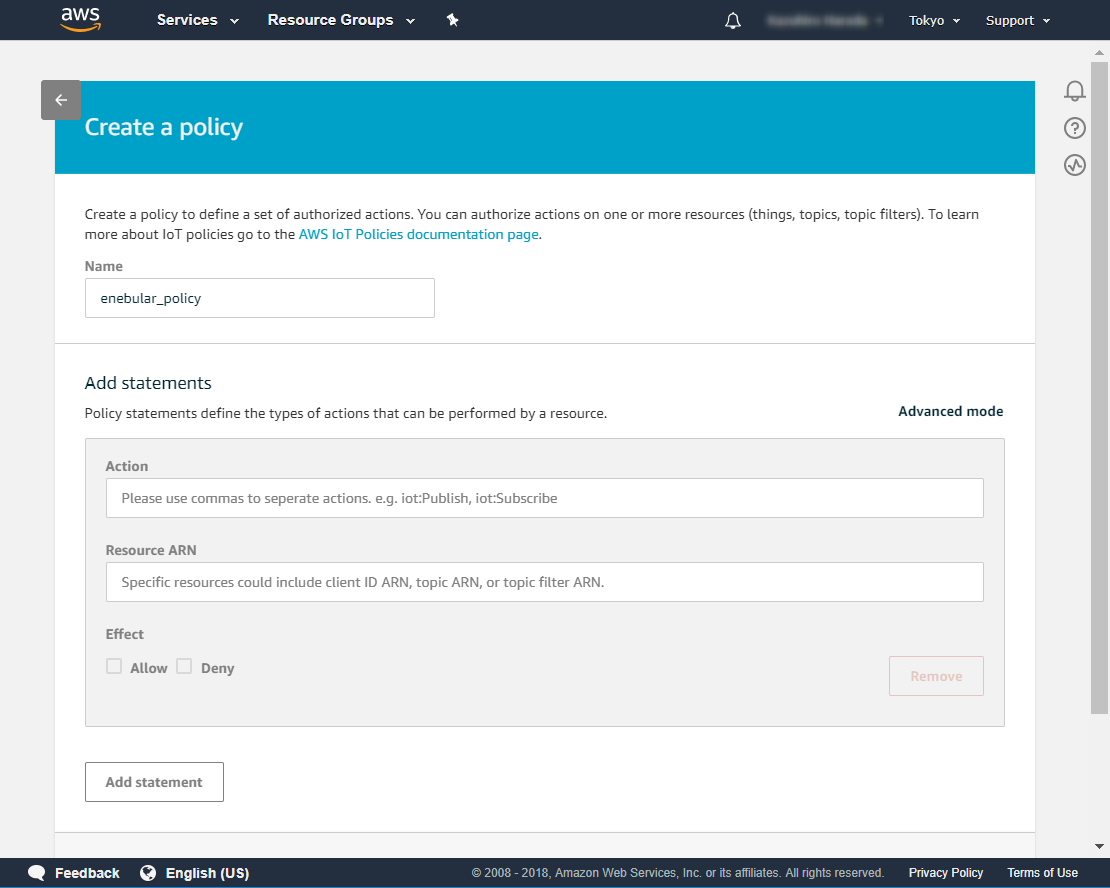

Next we add a statement.

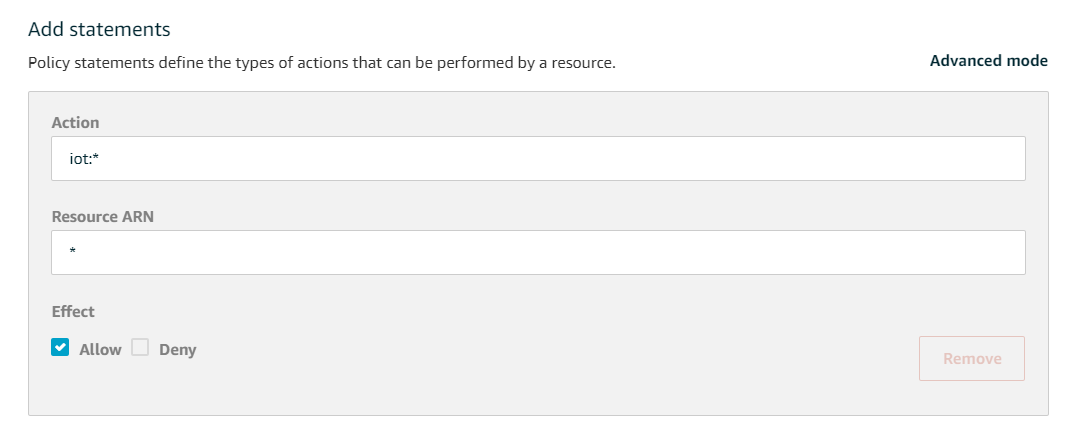

Specify the policy statements as shown below.

Action
- iot:*
Resource ARN
- *

This policy statement configuration provides a wide degree of access to allow for the tests here. Once you're ready, please fine tune the policy.

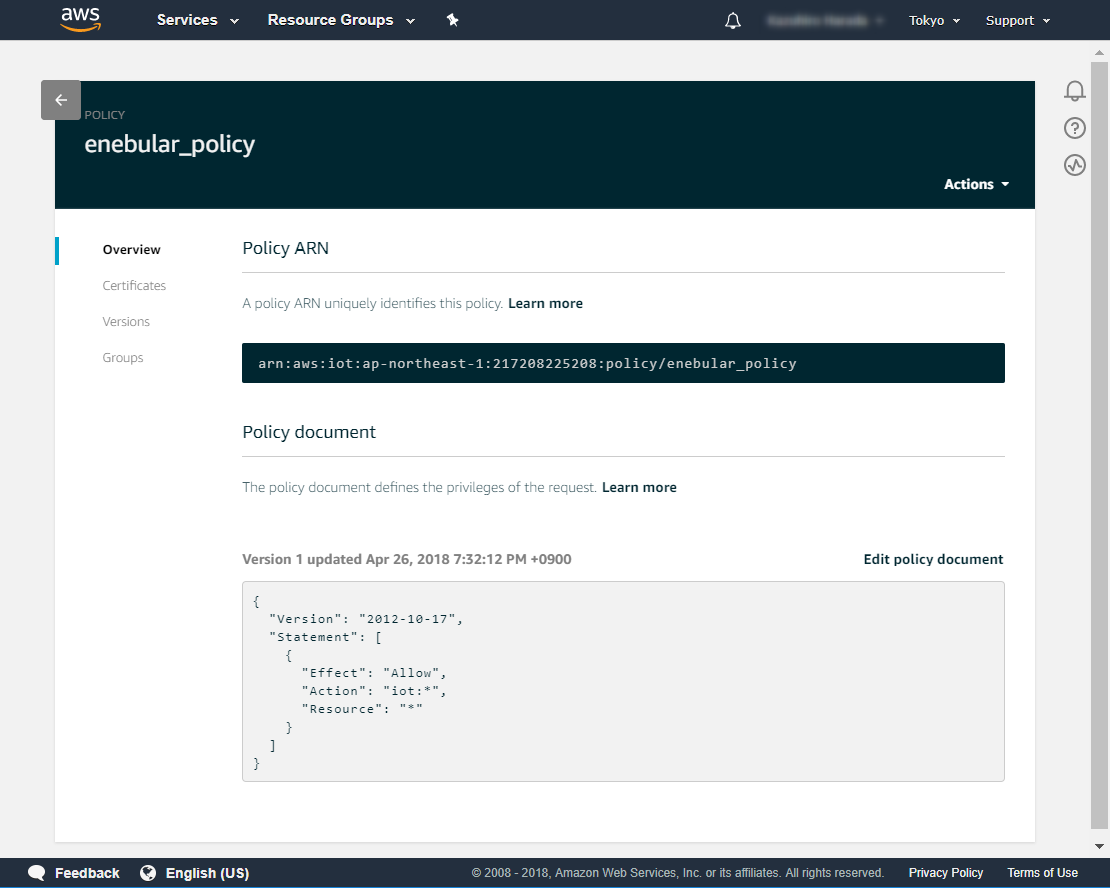

Press the create button to save the policy.

Attaching the Policy to the Certificates

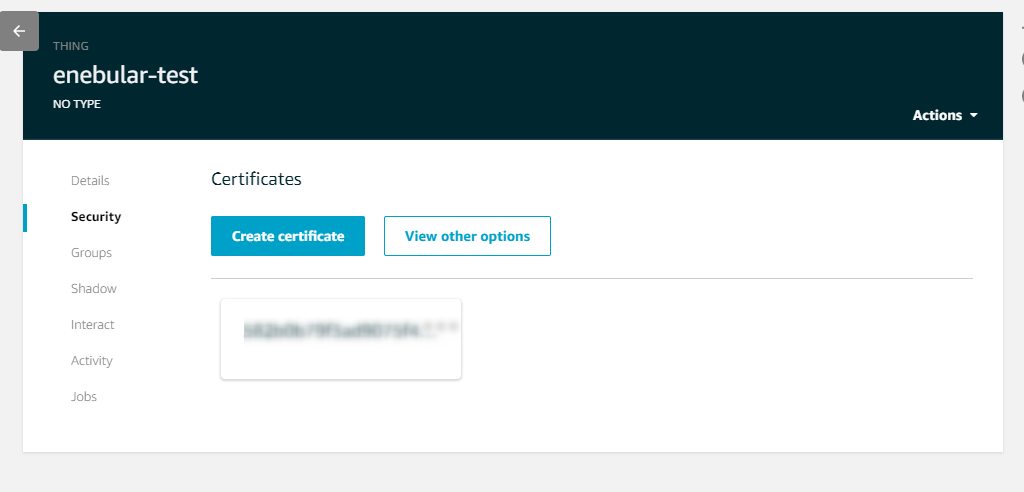

As things are now the policy and certificates are not tied together, so we will attached them here. Move to the details screen of the thing you created just before, and select the certificate from the security section in the menu.

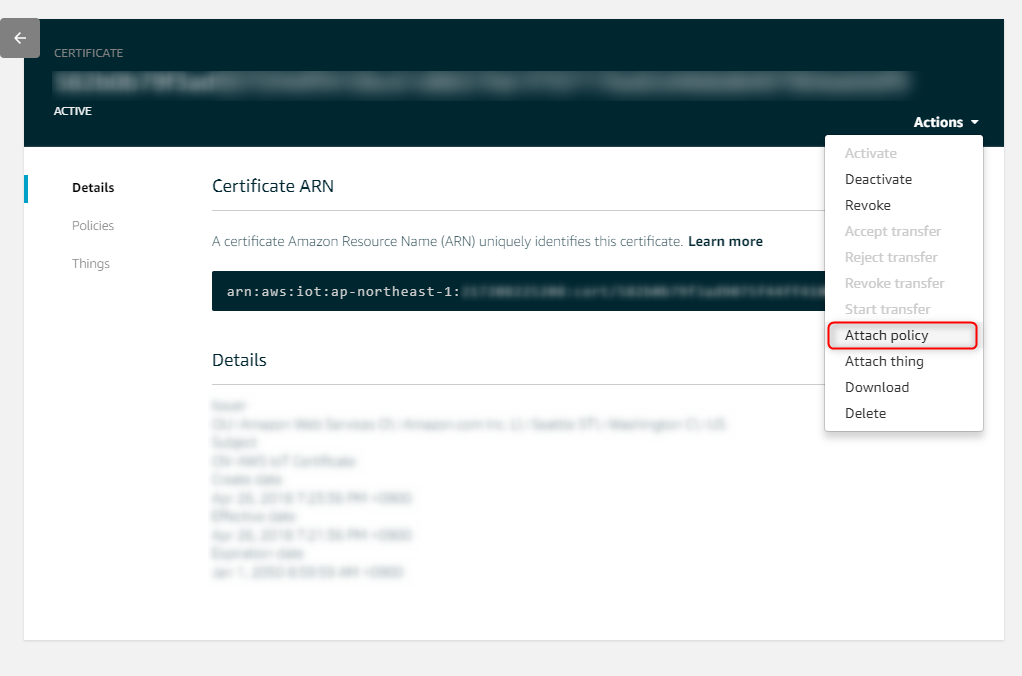

Select "Attach policy" from the "Actions" menu at the top right.

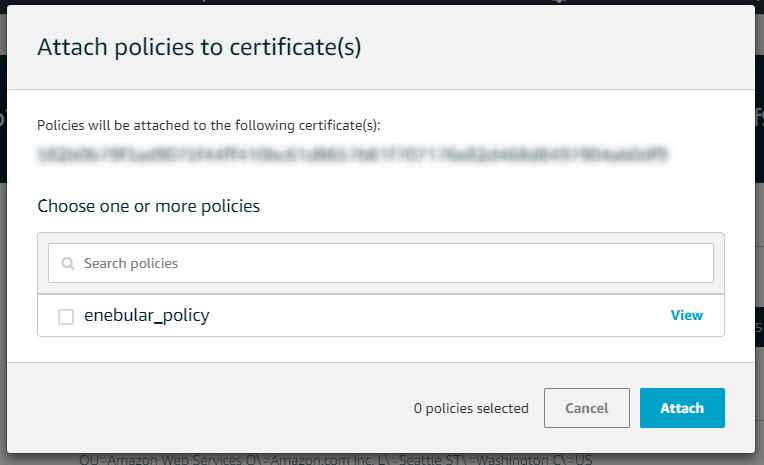

Attach the policy you created just before.

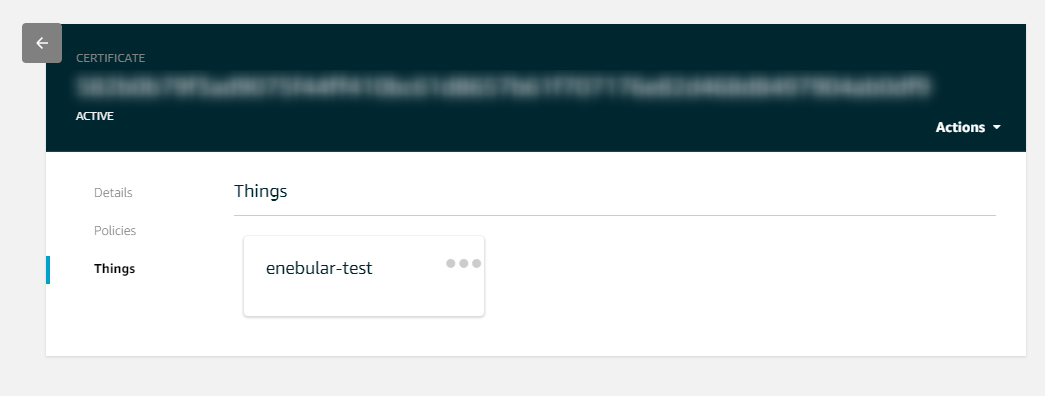

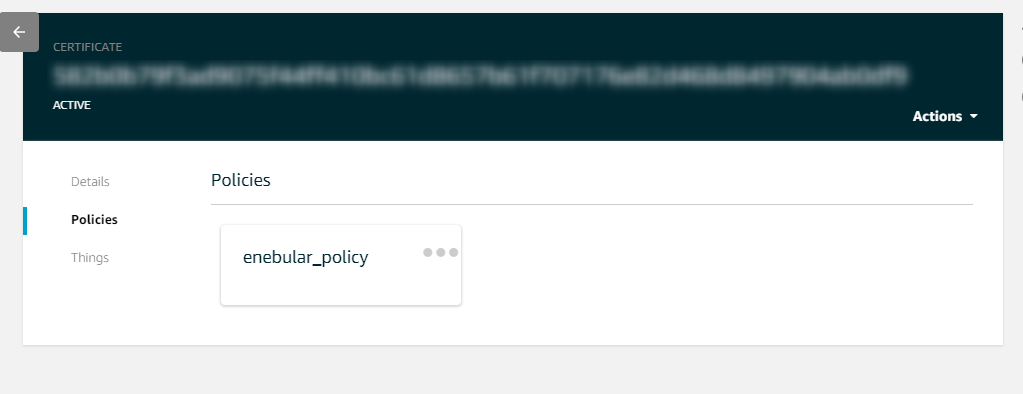

Once that completes, you can confirm that the certificate is tied to the policy and thing.

Creating a Rule for Connection State Detection

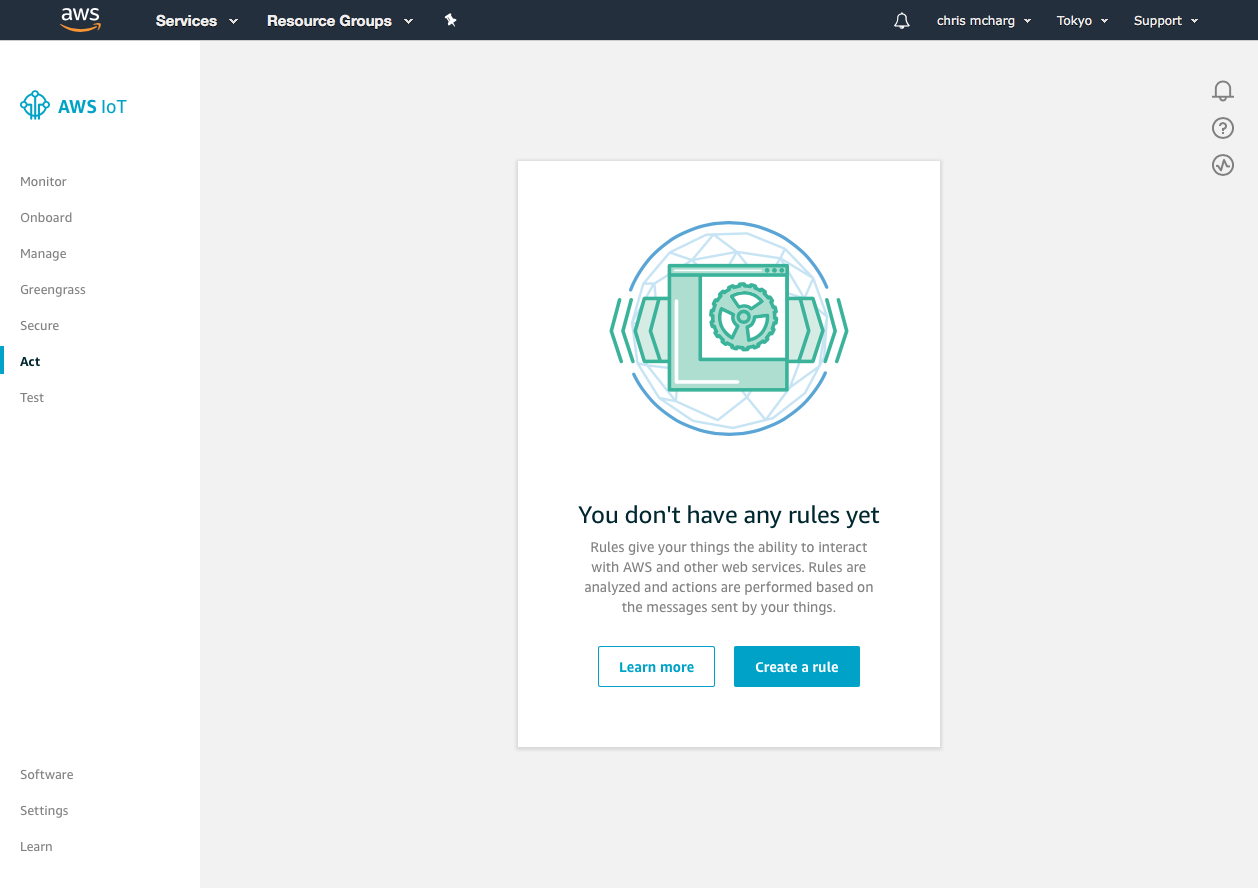

We'll add a rule to allow the connection state between the thing and AWS IoT to be correctly detected. Select "Act" from the menu and press "Create a rule".

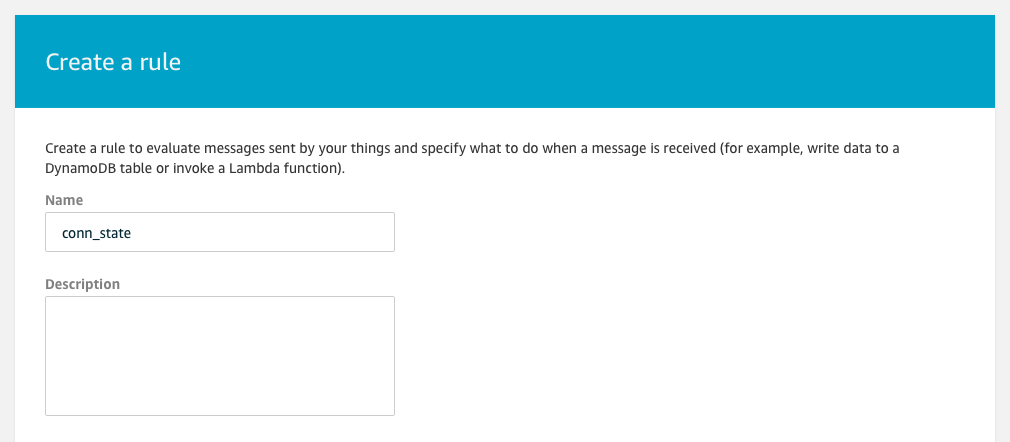

Specify an easy to understand name.

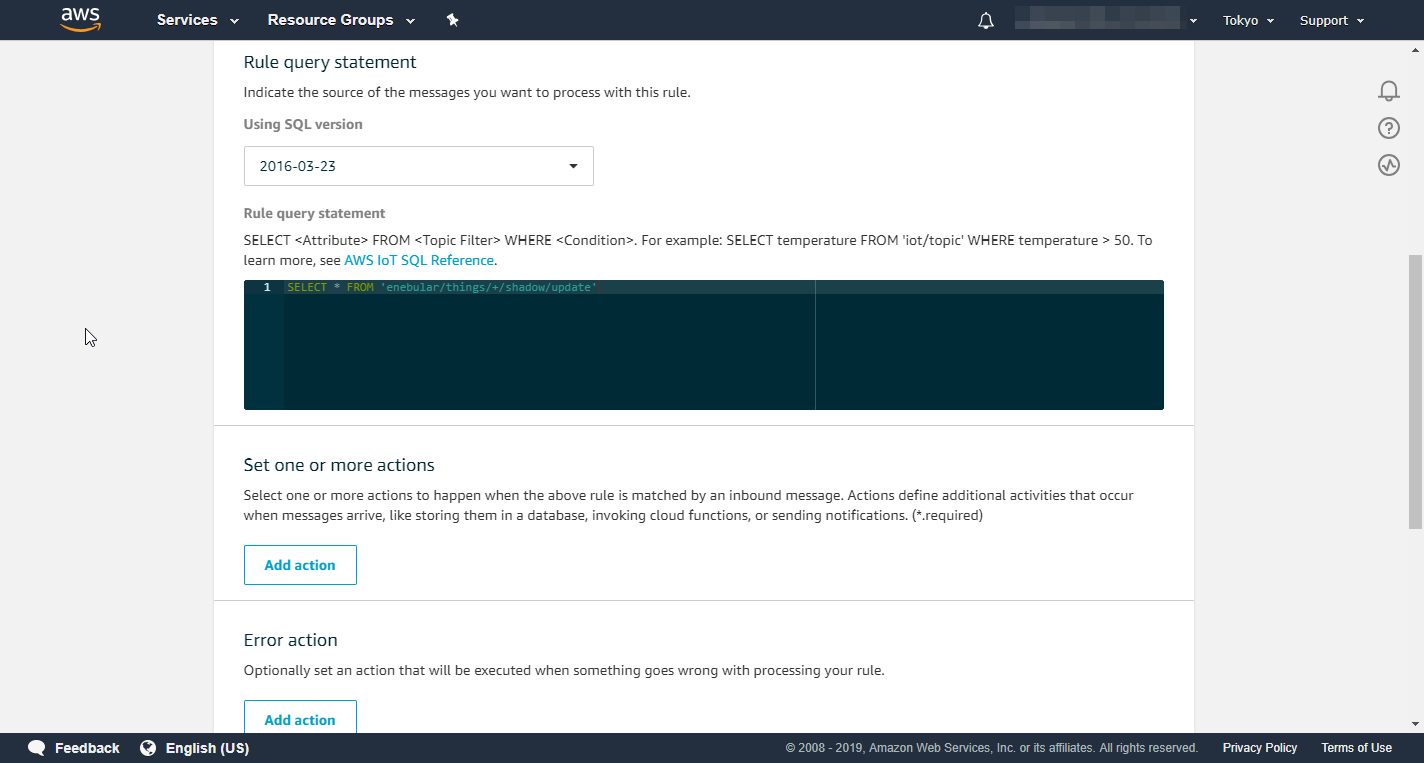

Set "Rule query statement" as shown below. "Using SQL version" is "2016-03-23".

SELECT * FROM 'enebular/things/+/shadow/update'

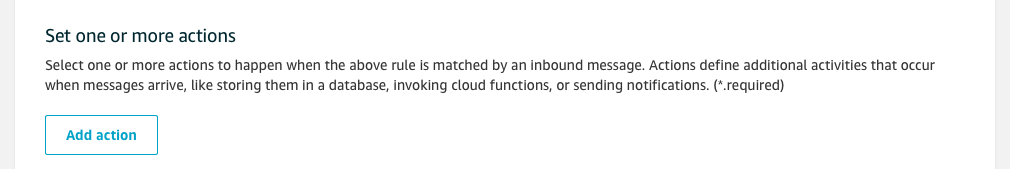

Add an action to the rule by pressing "Add action".

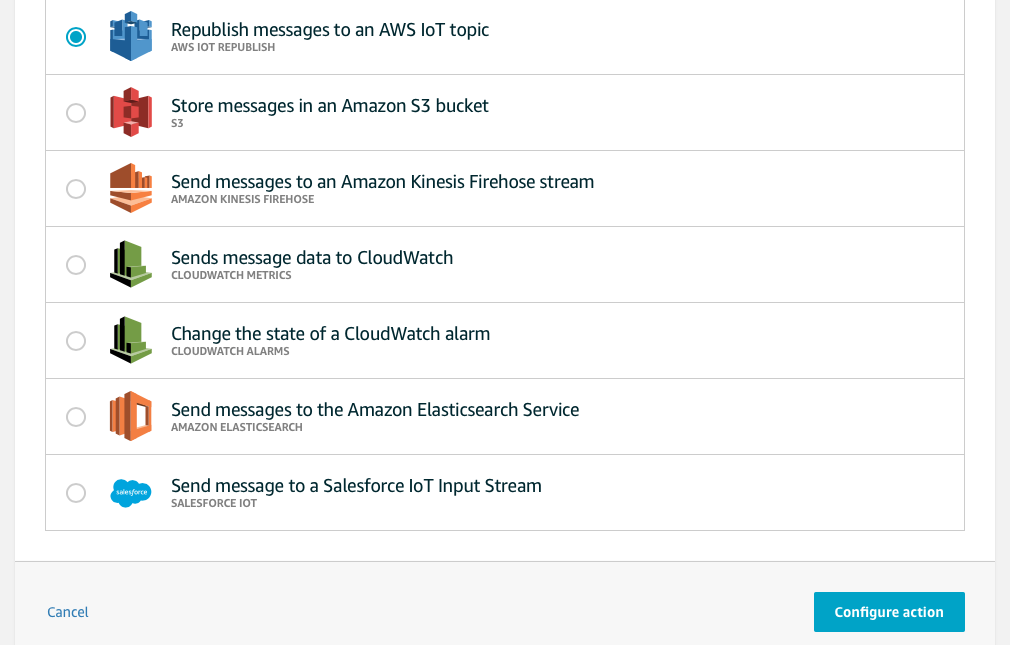

For the action, select "Republish messages to an AWS IoT topic". Once selected press "Configure action".

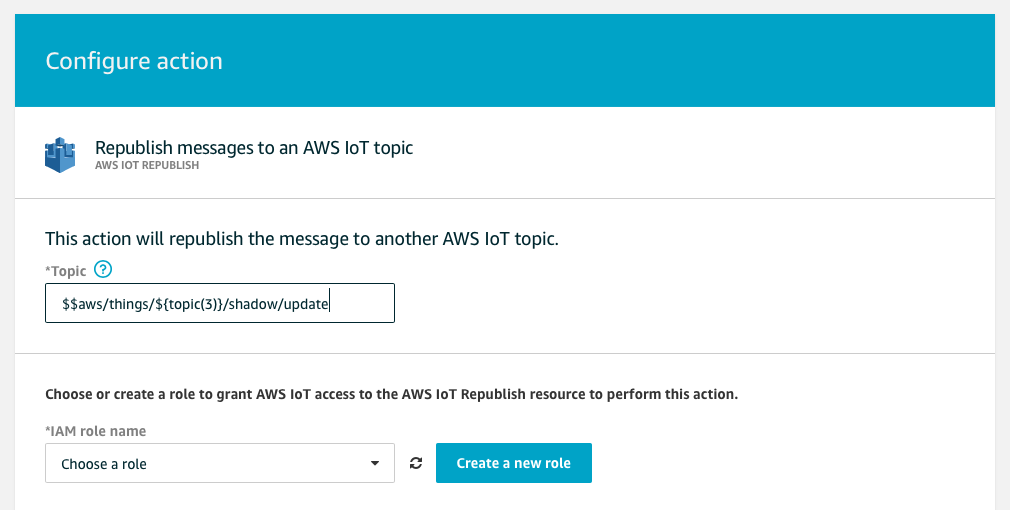

Specify the action topic as shown below.

Topic
- $$aws/things/${topic(3)}/shadow/update

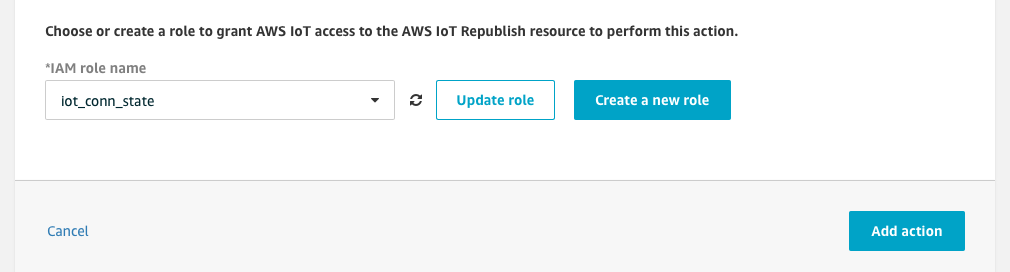

Create a role for the action by pressing "Create a new role".

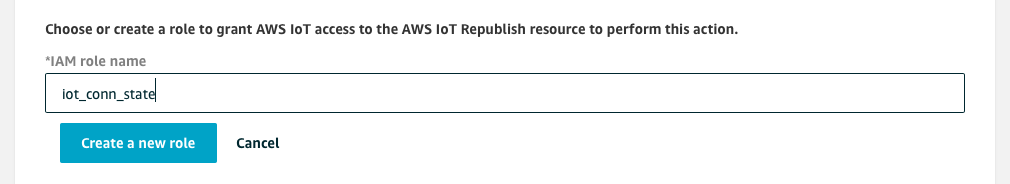

Specify an easy to understand name and press "Create a new role".

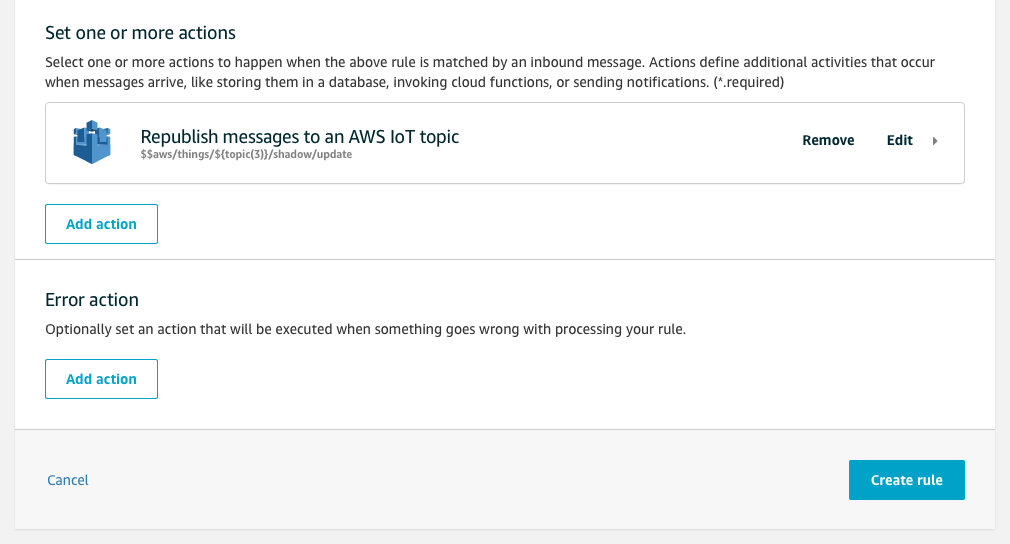

Select the created role and press "Add action".

The rule configuration is now complete, so press "Create rule".

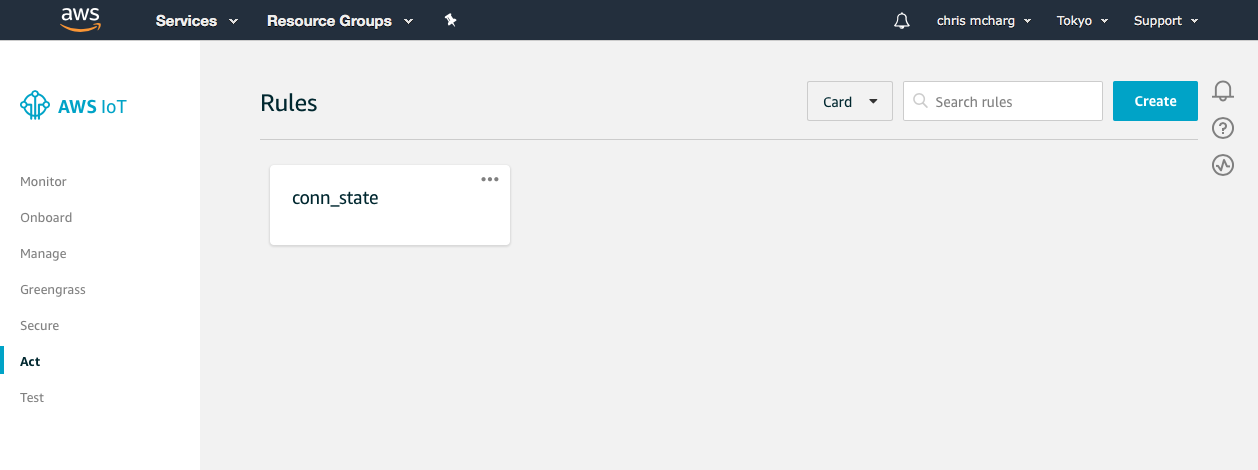

The created rule will be displayed.

Creating an IAM User for AWS IoT

In order to use AWS IoT from enebular, create an Access Key ID and Secret Access Key.

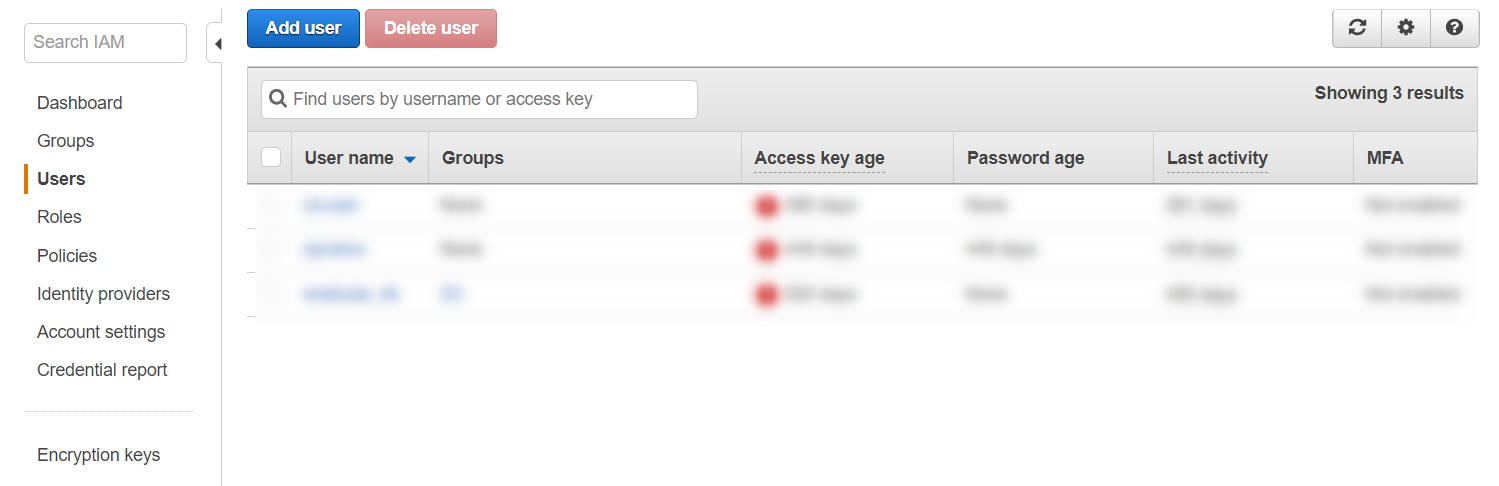

In the "Users" section of the IAM menu, press "Add user".

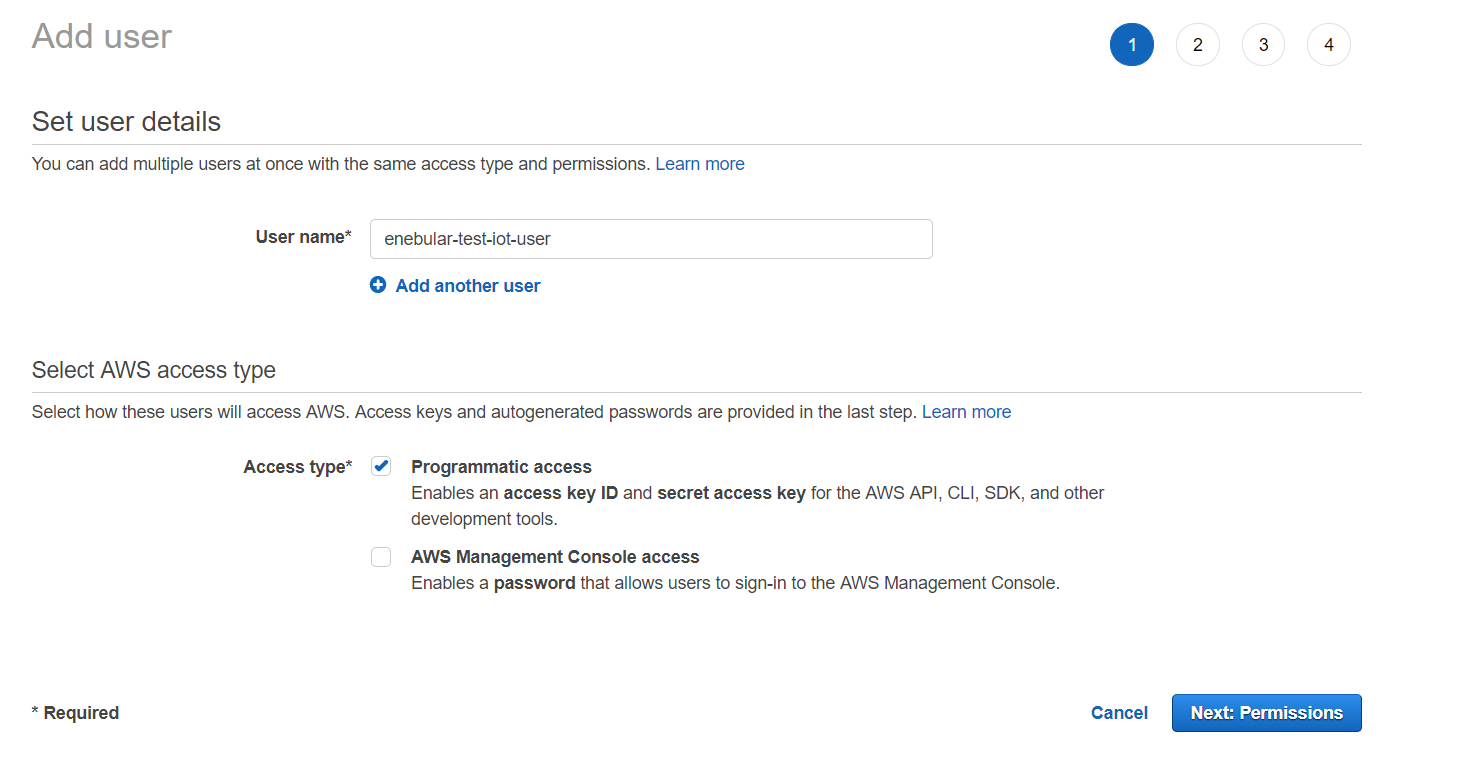

In the details section, set an easy to understand name and enable "Programmatic access".

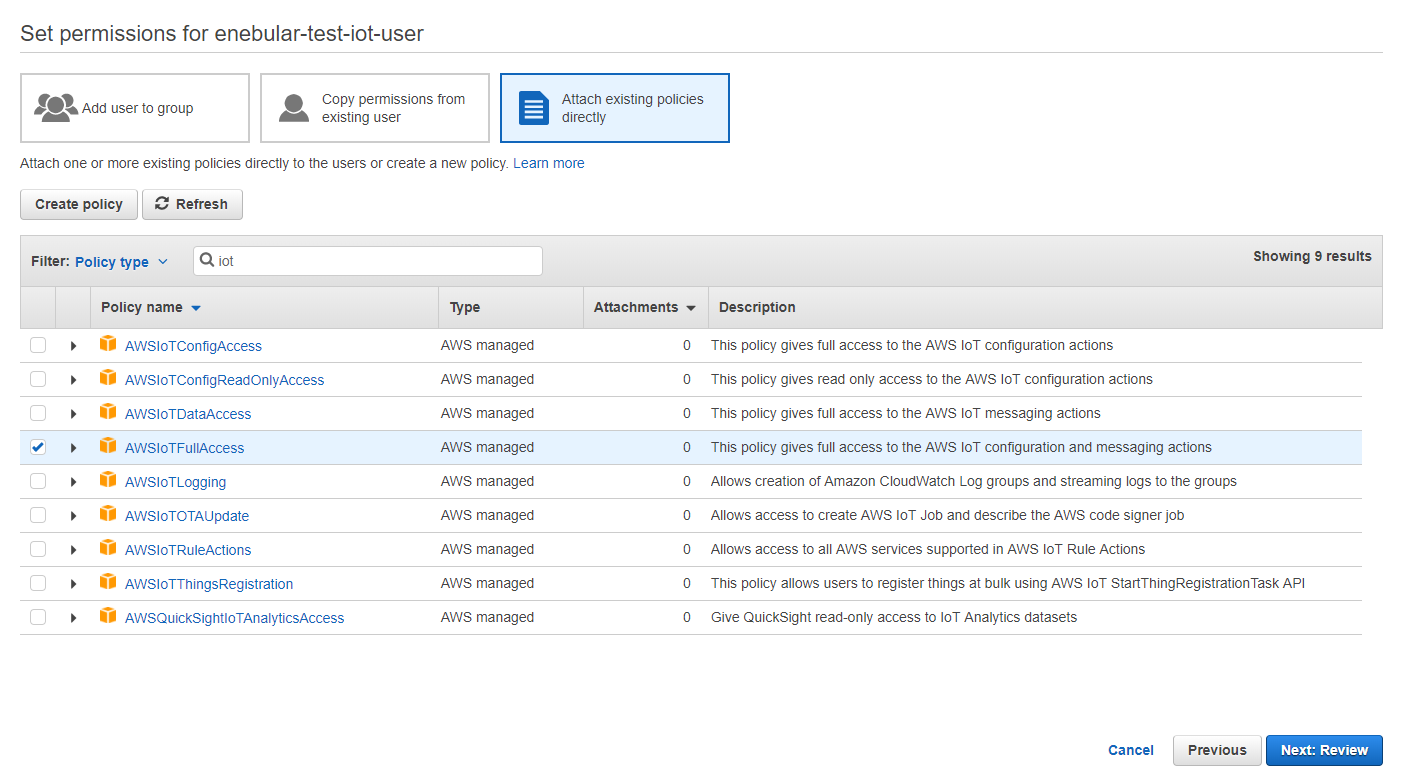

For the permissions, select "Attach existing policies directly", then select the "AWSIoTFullAccess" policy and move to the next step.

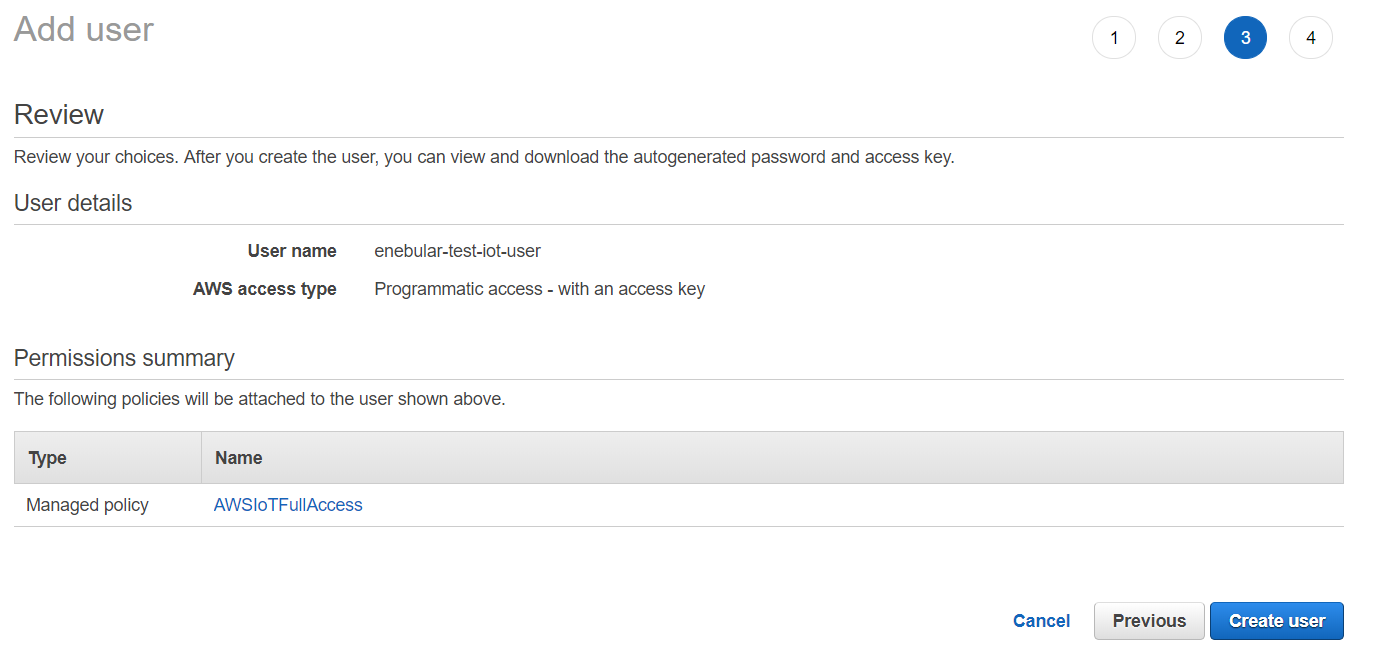

Finally confirm there are no mistakes.

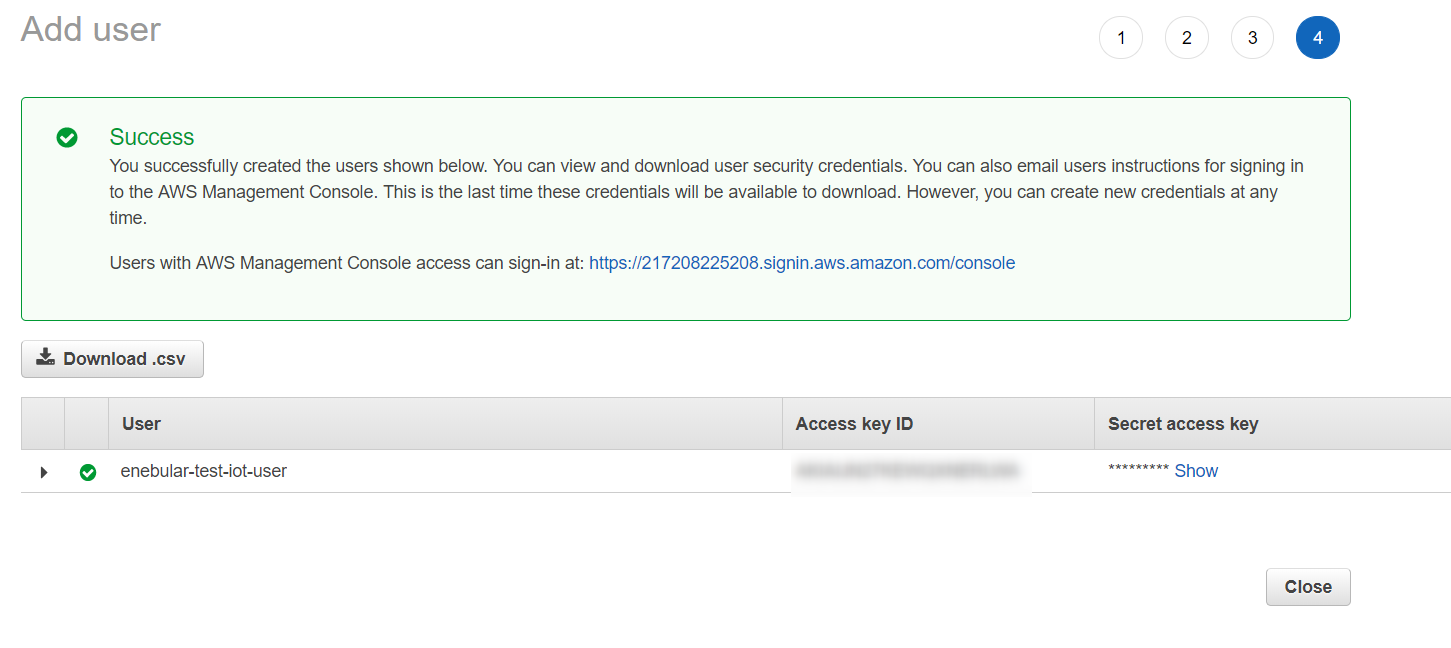

Once completed, download the CSV file that contains the Access Key ID and Secret Access Key (note that this is the only chance to download it).

Update the Flow with the AWS IoT Settings

We return to the AWS IoT settings screen from before and update the AWS IoT settings.

Press "New" to the right of "Select Connection". Enter the required information and create the connection.

Connection Name
- Any alphameric characters
AWS Access Key ID
- Copy from the downloaded CSV file
AWS Secret Access Key
- Copy from the downloaded CSV file
AWS IoT Endpoint URL

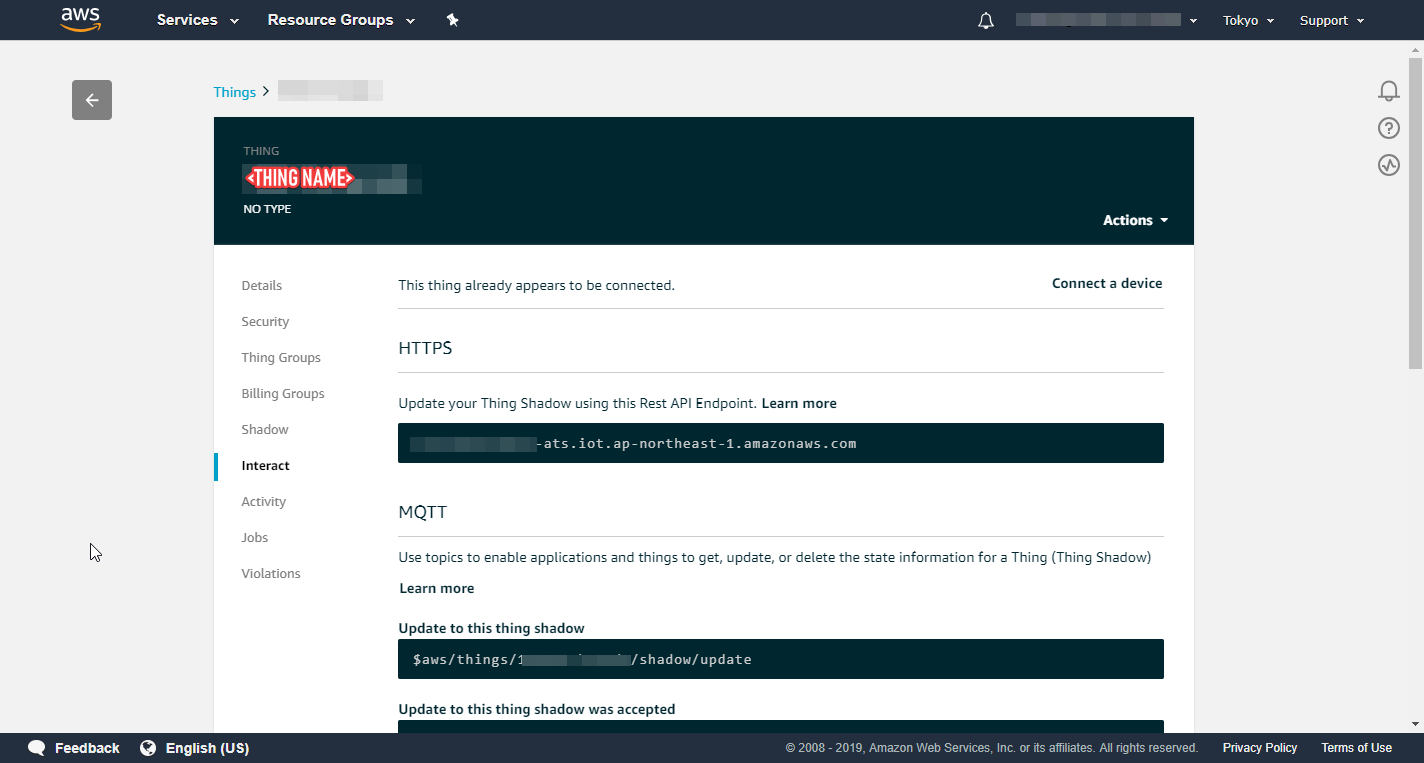

- This can be seen in the "Interact" section of the thing menu (refer to the image below)

When you select the created connection the registered things are displayed.

The thing will still be disconnected. Here, 'disconnected' means that the AWS IoT thing hasn't been deployed to yet or it is actually disconnected.

Let's now leave the enebular side and prepare a device setup on a PC.

Device (Agent) Setup

Here we set up a device. Note that the wrapper device code base that receives commands from the device manager and carries out the appropriate operations is referred to the agent here.

The agent can be downloaded from GitHub.

** Before proceed next step, your Node.js version set to 8.9.0 with npm module n.

Build the core enebular-agent module.

cd agent
npm install
npm run build

Install the Node-RED instance.

cd ../node-red
npm install

Install the AWS IoT port's modules and build it.

cd ../ports/awsiot
npm install
npm run build

There is an 'example' module under the AWS IoT port's directory that is just a simple wrapper of the actual AWS IoT port module. Go to its directory and install its modules. If you check the example's package.json file, you can see that it is setting the environment variable that specifies the Node-RED directory.

cd example
npm install

Copy the AWS IoT Thing certificate files you downloaded just before to the certs directory in the example folder.

* these files

Update the example's config.json file with the connection details (including the correct paths of the certificate files).

{
  "host": "<THING SHADOW REST API ENDPOINT>",
  "port": 8883,
  "clientId": "<THING NAME>",
  "thingName": "<THING NAME>",
  "caCert": "./certs/AmazonRootCA1.pem",
  "clientCert": "./certs/<THING CERT>",
  "privateKey": "./certs/<THING PRIVATE KEY>",
  "topic": "aws/things/<THING NAME>/shadow/update"
}

<THING CERT> ･･･ xxxxxx-certificate.pem.crt
<THING PRIVATE KEY> … xxxxxx-private.pem.key

You can confirm <THING SHADOW REST API ENDPOINT>, <THING NAME> in the "Interact" section of the thing menu AWS IoT. (refer to the image below)

Running

Once the above setup has been completed, enebular-agent can be started from the example directory with the npm run start command.

By default enebular-agent will not log to the console, however this can be enabled by setting the DEBUG environment variable to either info or debug.

DEBUG=info npm run start

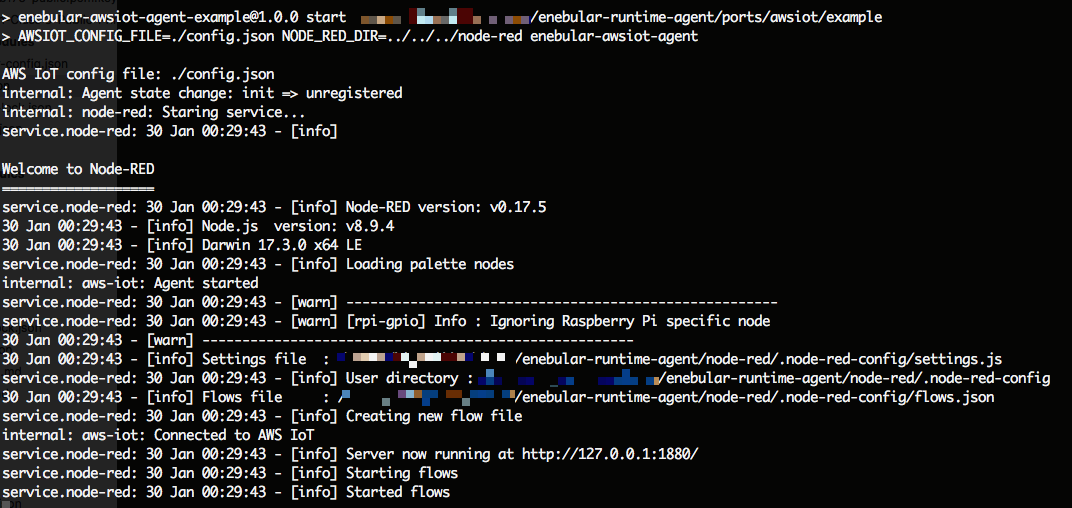

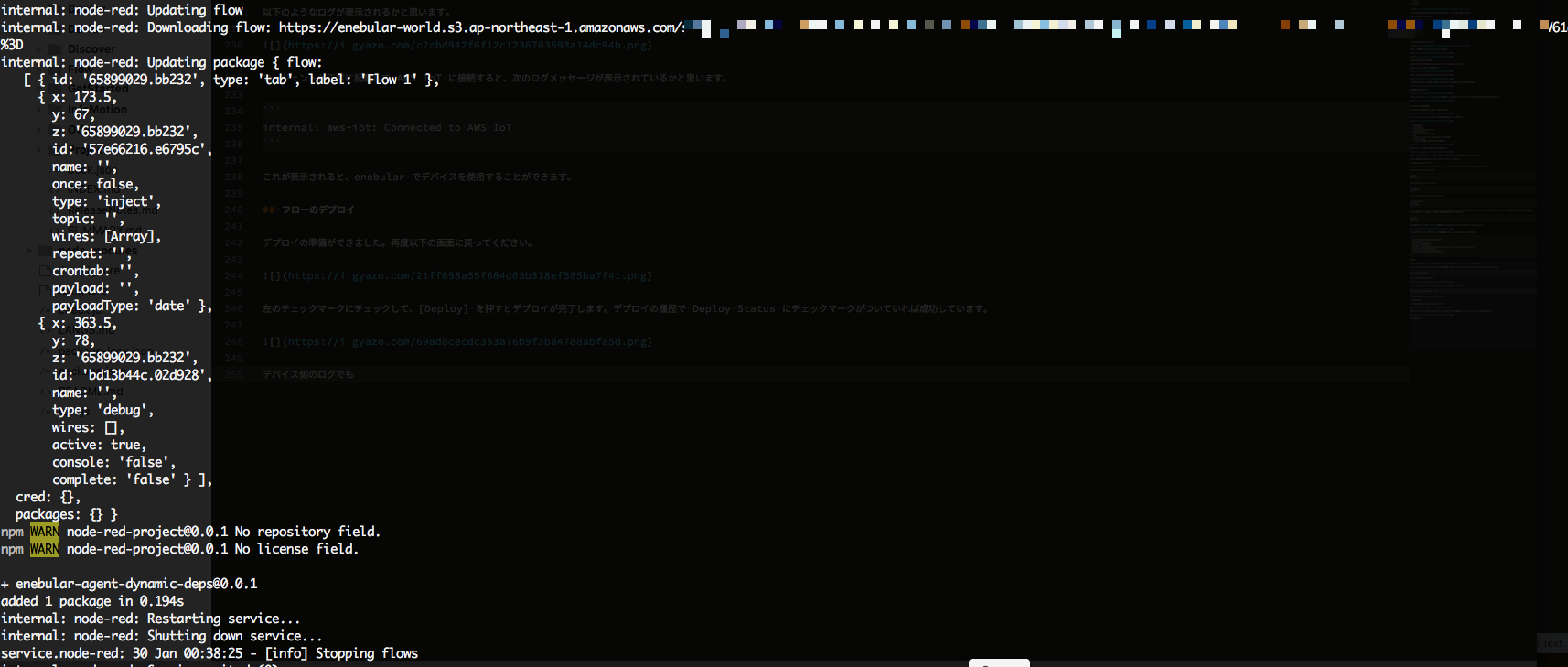

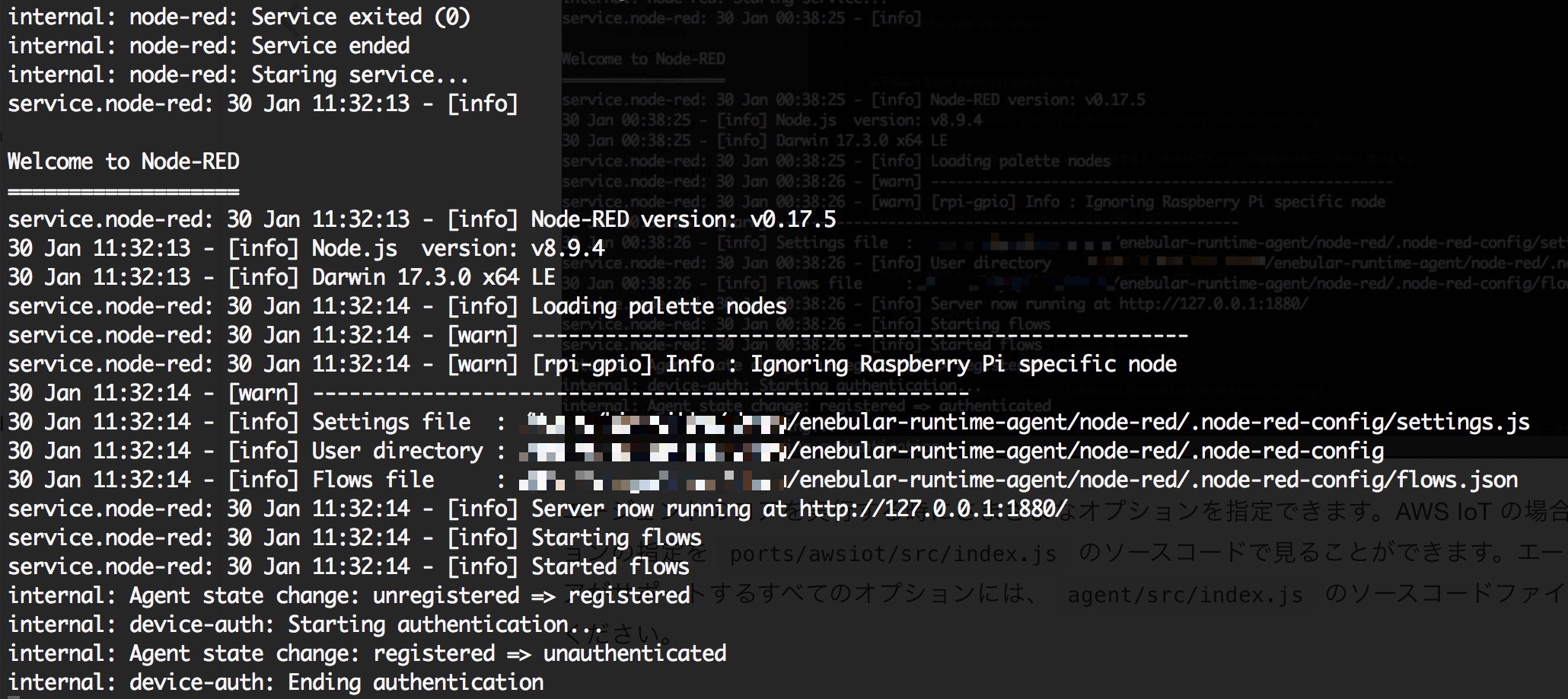

Log messages similar to the following should be displayed.

If enebular-agent successfully starts and connects to AWS IoT, it will display the following log message.

internal: aws-iot: Connected to AWS IoT

Once that message is displayed, the device can be used with enebular.

Deploying the Flow

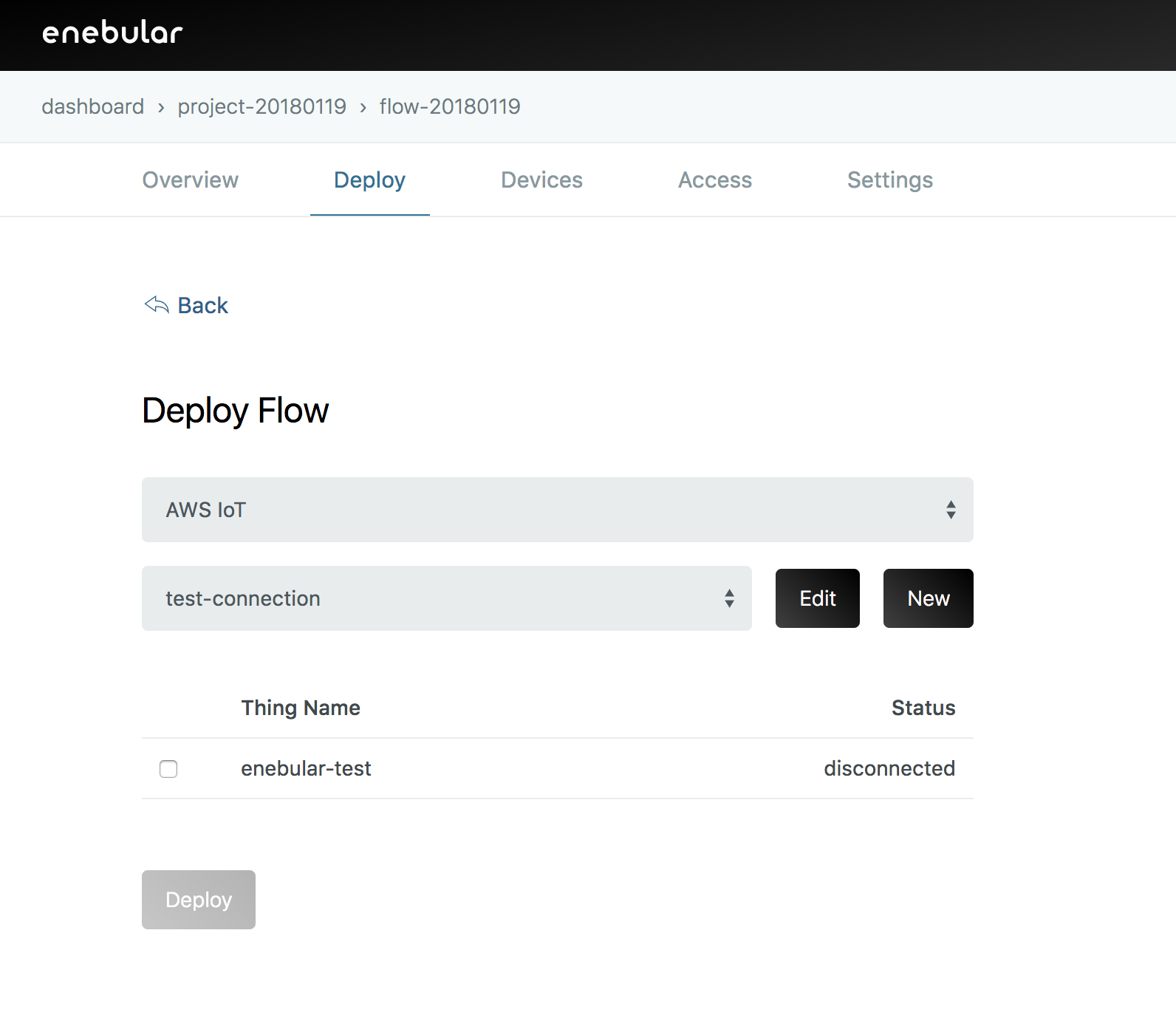

We're now ready to deploy the flow. Move back to the screen below.

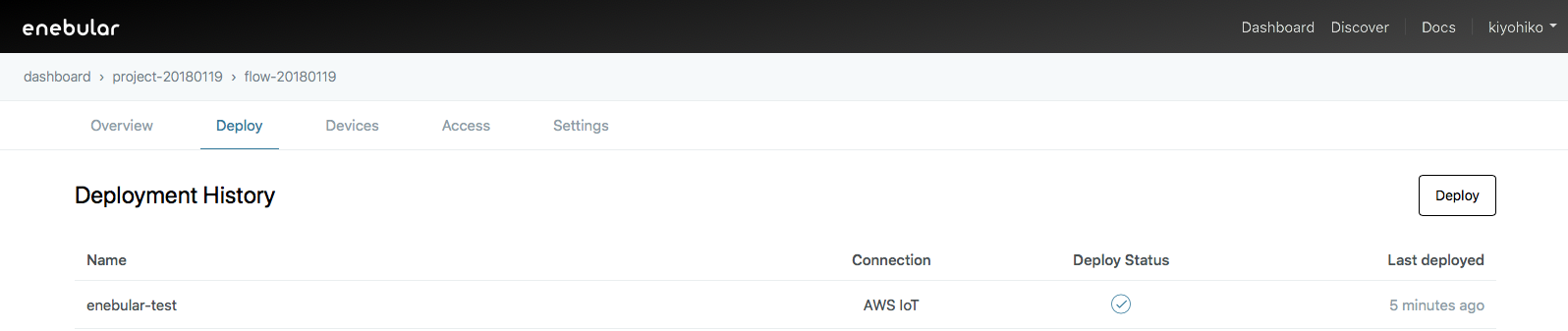

When you select the check-box on the left and press "Deploy" the deploy will complete. If the "Deploy Status" has tick mark in the deploy history, then it has succeeded.

You'll also be able to see the device side log updating.

While unauthenticated will be displayed, this is just because a license hasn't been purchased. Purchasing a license is not required for the flow to run, but by purchasing a license status and log monitoring becomes available.

When running the agent core you can specify various configuration options. For the AWS IoT port, this can be seen in the ports/awsiot/src/index.js source code. For all of the configuration options that the agent core supports, refer to the agent/src/index.js source code file.
